BMW

Bayerisches Motoren Werke AG

The most forward thinking, innovative brand continuously pushing the envelope of what is achievable. Being so far in front also brings with it "bleeding edge" issues. These are not the fault of BMW, who design & assemble brilliant cars, but rather the sub component supplier.


What follows are our solutions for perusal, click on pictured items to reveal pricing.

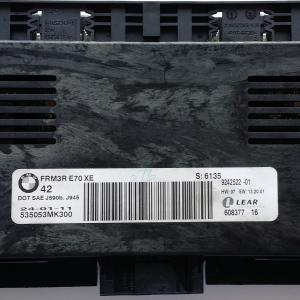

  • FRM3 Footwell module

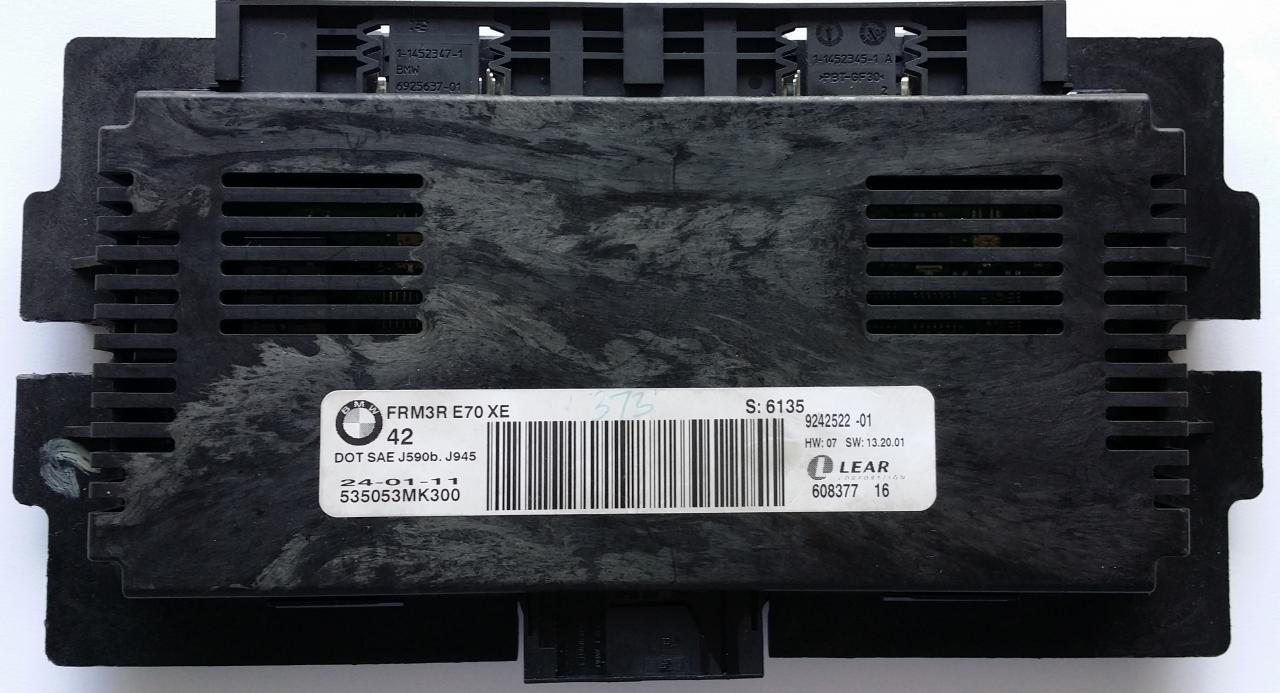

    • Footwell Module

      E87, E90, E70 Footwell Module

    The LEAR FRM3 powers internal & external lights, senses door contacts and power windows. It has a significant role in safe vehicle operation on the road.

    FRM total failure is a worldwide problem often triggered by disconnecting the battery or even through performing basic diagnostic tests. In the failed state there is no control over lights and windows. The car will enter an emergency lighting mode.

    Autotronic can repair all FRM faults as described.

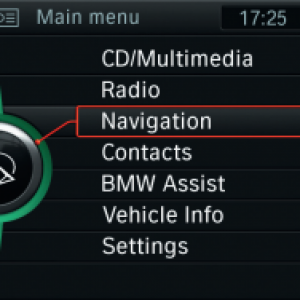

  • CIC I-Drive navigation system

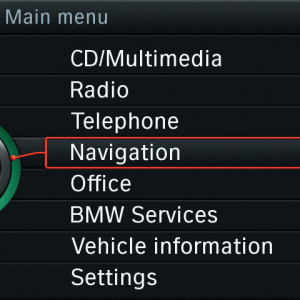

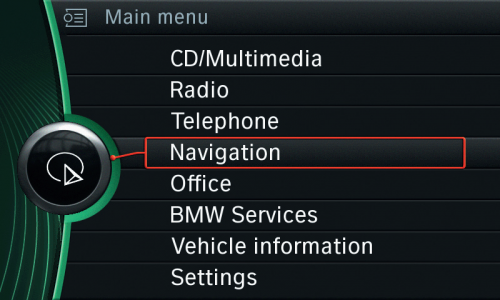

    • CIC MID
      E60, E87, E70, E90, F01, F10, F25

    • CIC Professional
      E60, E87, E70, E90, F01, F10, F25

    Harman Becker CIC was introduced progressively from 2009. Two hardware versions were available: MID (6.5" LCD) and Professional (8.8" LCD).  Both have a single CD/DVD disc drive and save road map data on an internal storage device.

    CIC units can develop either of the following faults:-

    • DVD drive can become unreliable reading discs
    • There is no sound output and / or radio stations
    • The navigation function may be disabled
    • The unit may initiate frequent restarts, flashing the BMW logo in the process
    • The unit may fail to start up completely and remain at the BMW logo screen
    • The unit may not start at all, in which case the screen remains dark
  • M-ASK & CCC i-drive navigation system

    • mask

      Multi-Audio System Kontroller
      E60, E87, E70, E90

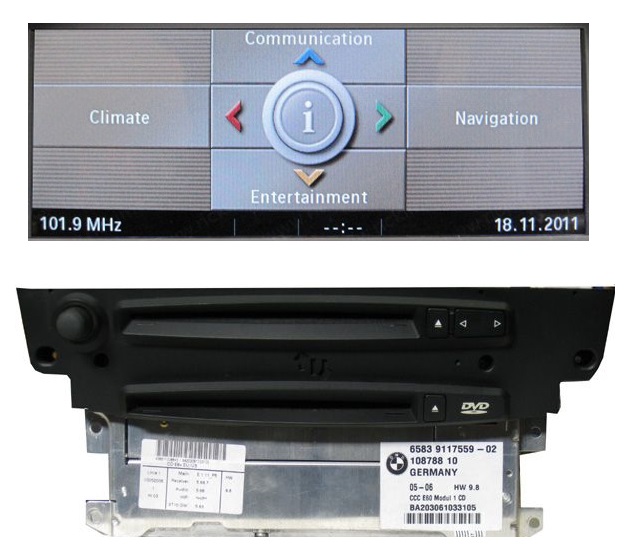

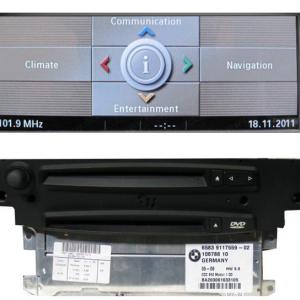

    • CCC iDrive head unit

      Car Communication Computer
      E60, E87, E70, E90

    The business navigation units made by Harman Becker feature a single disc drive. Audible navigation instructions are supplimented with on screen arrows. A road map cannot be displayed. Failure is evident with a black monitor display. The unit becomes completely non-responsive.

    Professional navigation units manufactured by Siemens VDO at the time (also referred to as Car Communication Computer or simply CCC) are showing several common faults. Faults identified with known solutions include:-

    • DVD drive can become unreliable reading map discs
    • The unit may initiate frequent restarts, flashing the BMW logo in the process
    • The unit may fail to start up completely and remain at the BMW logo screen
    • The unit may not start at all, in which case the screen remains dark

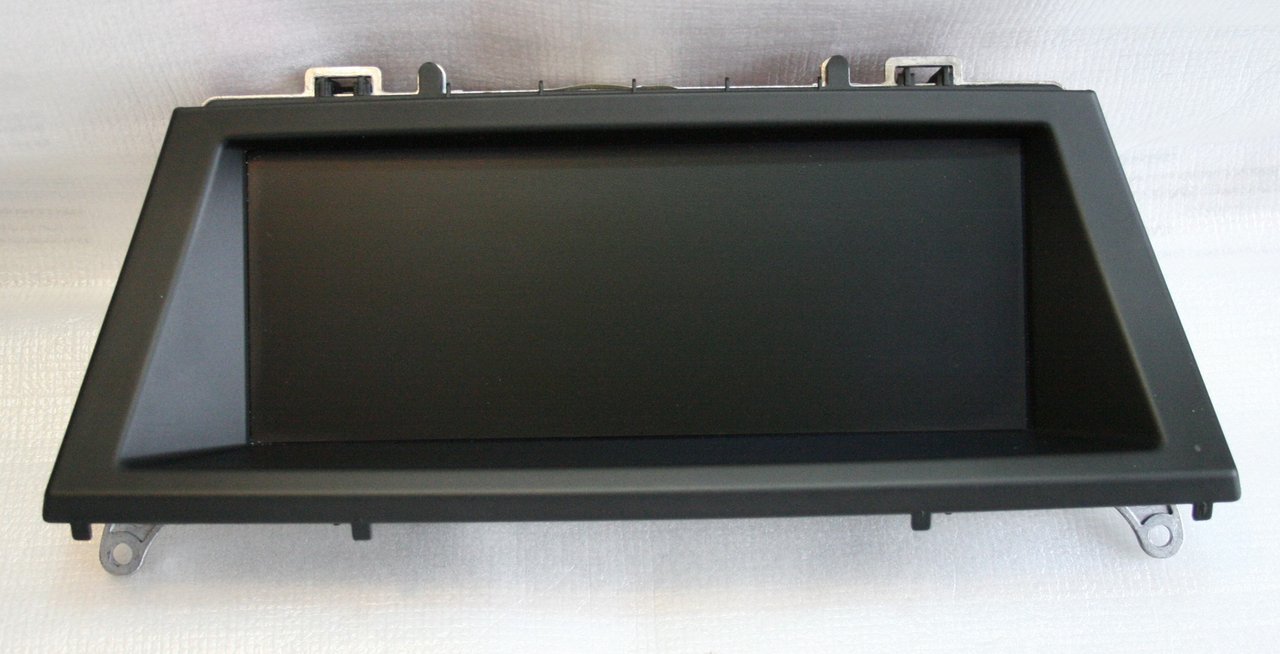

  • X5 E70 pRE lci 8.8" cENTRAL INFO DISPLAY - cid

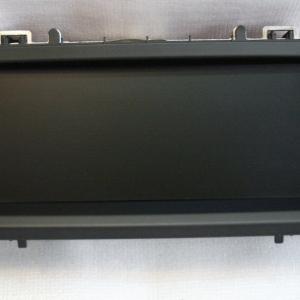

    • E70 CID

      E70 E71 i-drive CID

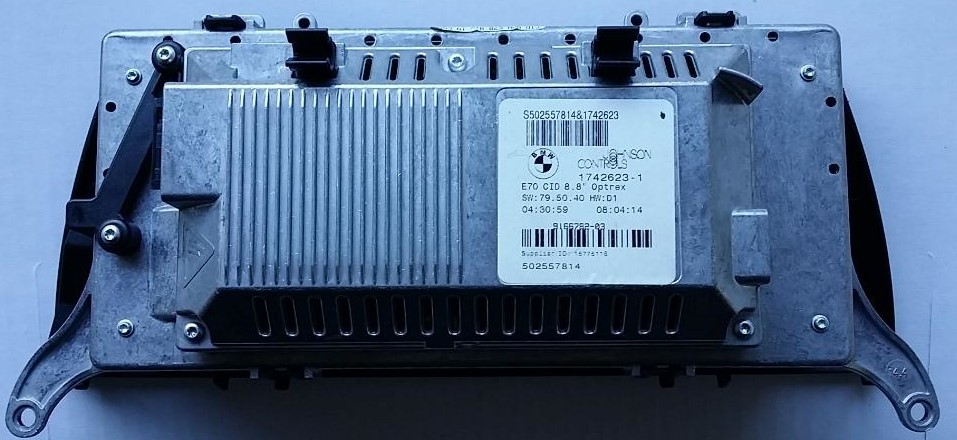

    • Rear

      Rear view

    Johnson Controls manufactured the CID for the US built X5. As these vehicles age, display problems are becoming a common occurrance. The following are typical problems related to defects with the display particularly in cold conditions:-

    1. Rapid flickering of the illumination, menu graphics are visible.
    2. No illumination, the menu graphics are visible as a dim image.
    3. No illumination or graphics visible, audio in the car works (CCC is functioning).
  • bluetooth telephone Interfaces

    • bluetooth

      Bluetooth module
      E60, E87, E90

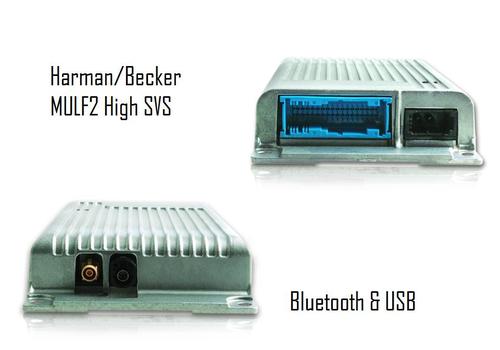

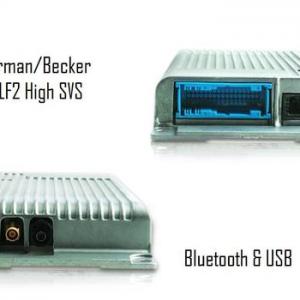

    • Harman/Becker MULF2 with USB music player

    Bluetooth, speech recognition & telephone charging modules are networked on the fibre optic sound and data transport network, commonly referred to as MOST. Failure related to a bluetooth module is easily diagnosable with loss of that function. Additional transient secondary symptoms may occur due to network disturbances, such as random muting of music and/or sluggish to even non-responsive i-drive menus. We service both Visteon and the Harman/Becker devices.

  • Analog to Digital TV MODULE conversion

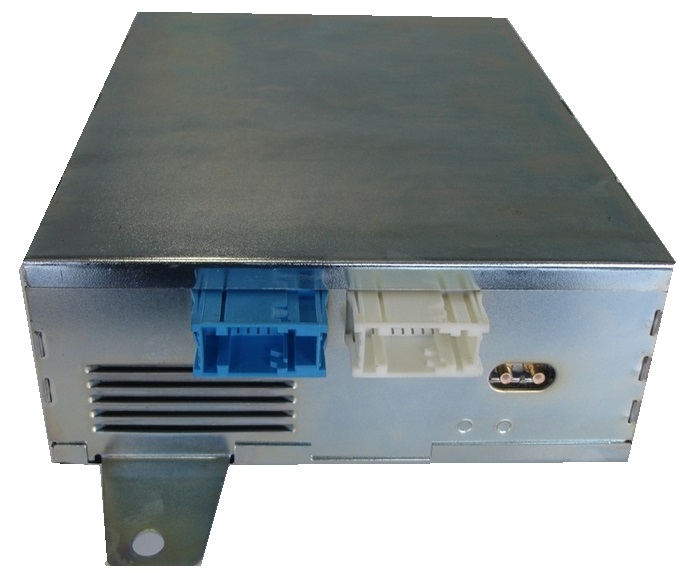

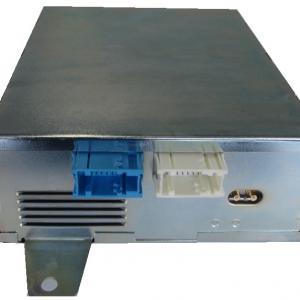

    • Analog Video Module

      E38, E39, E46 or E53
      iBus

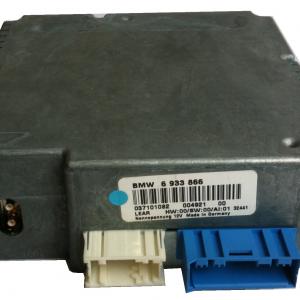

    • Digital Tuner

      E60, E63, E65, E70 or E90
      iDrive

    Engineered for cars already equipped with analog TV function.
    Convert your existing TV module to enable freeview SD digital viewing.
    Control it directly from the on board monitor or iDrive.

    Easy Plug & Play, requires no changes to the car.
    Goto our BMW Digital TV page for more details.

  • Most popular: Monochrome lcd

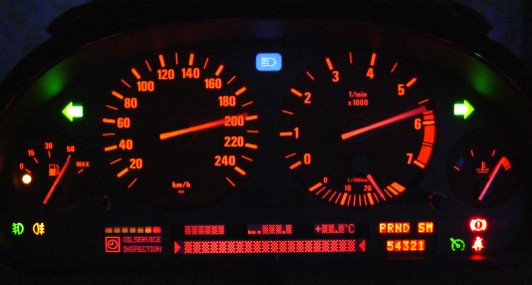

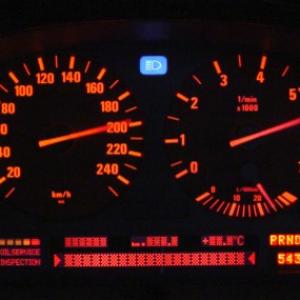

    • E38, E39, X5 Instrument Cluster

      Instrument Cluster
      E38, E39, X5

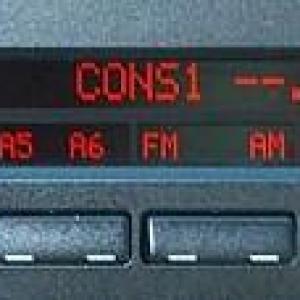

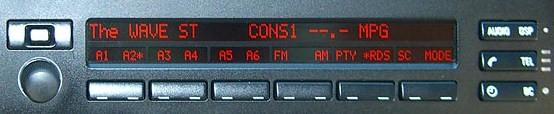

    • MID

      Multi-Info Display
      E38, E39, X5

    The instrument cluster's multi line on-board computer LCD and separate radio displays commonly have missing pixel lines.

  • Professional Radio                                     i Drive controller

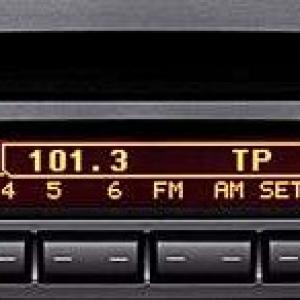

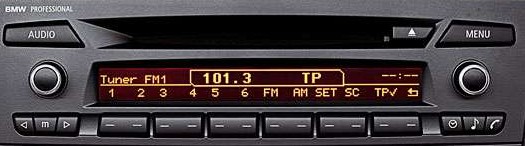

    • cd73

      Professional radio
      E87, E90

    • e90controller

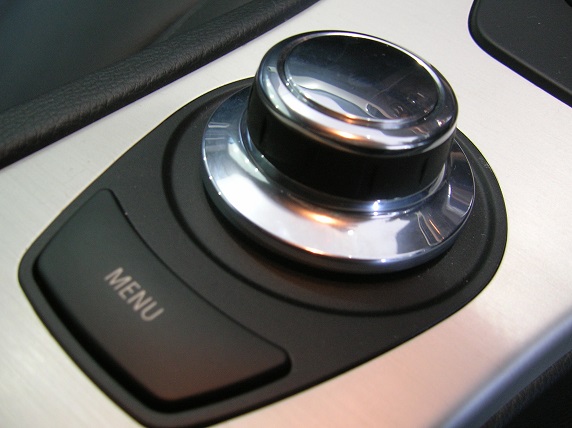

      E90 Business Navigation Controller

    Please note as of 2019 we no longer stock or repair the LCD display in the BMW Professional Radio.


    New generation E90 Professional radios (dials have chrome rings) may fail completely. The CD load/eject continues to function, but there is no display or audio functions. The car battery may also be drained due to constant current draw by the radio.


    E90 Business navigation head units are operated using the classic BMW iDrive controller. This input device detects multiple movements:

    1. left-right, foward-back
    2. counter & clockwise rotation
    3. push down (for on-screen input or action selection)

    This controller may fail to respond to the "push down" action.

  • Colour tft lcd                                                             Remote Keys

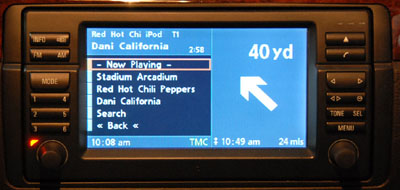

    • Monitor

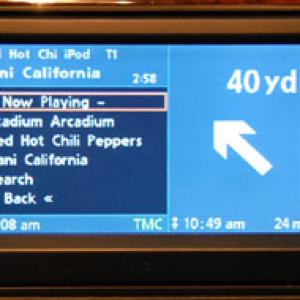

      On board Monitor
      E38, E39, E46, X5 wide screen

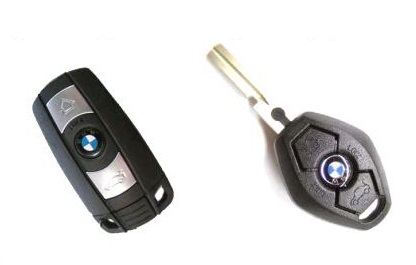

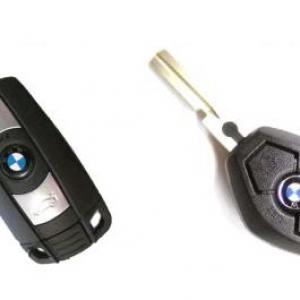

    • KeyFob

      Rectangular and Diamond
      remote key

    Widescreen monitors suffer from two separate conditions, either multiple irregular areas with colour loss or a display without illumination. New 16:9 LCD panels are available.

    The older 4:3 monitor typically will present a black screen.


    Repeated rough handling of remote keys will eventually lead to loss of remote door/boot lock/unlock functions. Starting the engine will still be possible.

  • Navigation computer

    • navi

      Navigation Disc Reader & CPU
      E38, E39, E46, X5

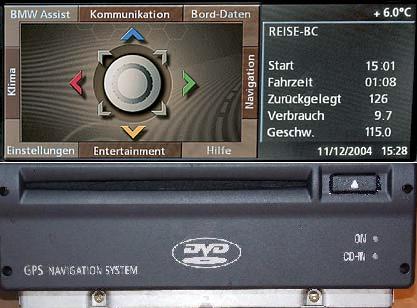

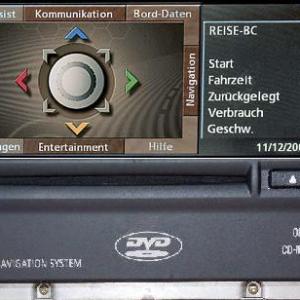

    • e65 navi

      Navigation Disc Reader & CPU
      E65

    Navigation computers of this early era are commonly experiencing either map disc read faults (cannot display a map) or complete system failure (navigation no longer selectable and red power LED off or flashing).

    Excluding E65, water entry into the casing eventually causes complete system failure.

  • Audio units

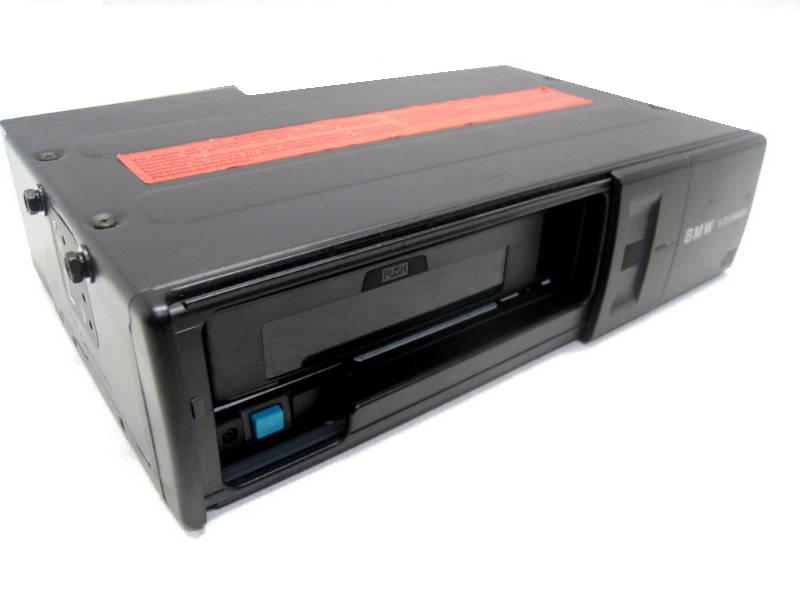

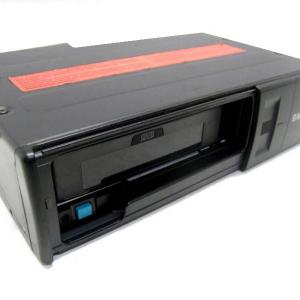

    • stacker

      Alpine CD stacker
      E38, E39, E46, X5, E65

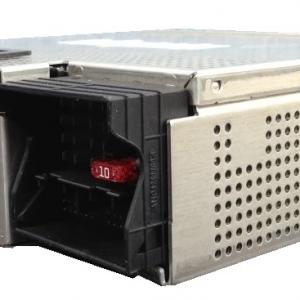

    • BM53

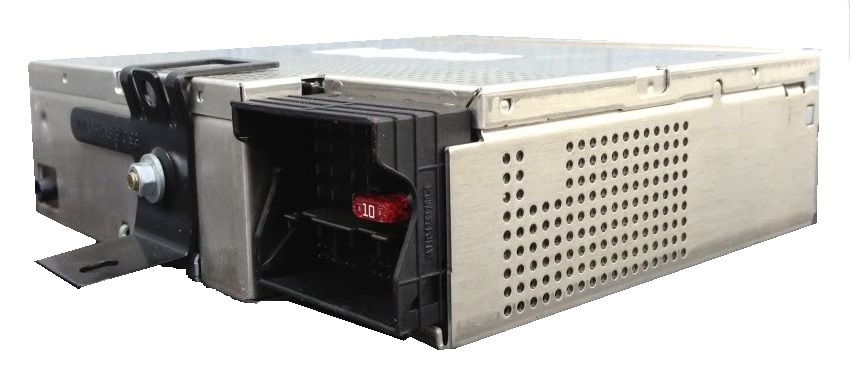

      Becker BM53 Radio Tuner Amplifier
      E39, E46, X5

    The Alpine stacker can sieze up, refuse to play and fail to eject magazine cartridge.

    The Becker radio can have a number of separate issues such as failing to pick up radio stations and/or dropping audio channels. In certain cars, water damage can permanently damaged this unit if left untreated.

OUR SHIPPING ADDRESS IS AS FOLLOWS

AUTOTRONIC LCFS PTY LTD

107 CENTRE ROAD

BRIGHTON EAST  VIC  3187

For quickest arrival we recommend Australia Post or Couriers Please.
